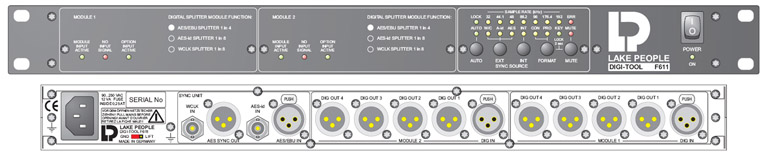

2 x 1 入 4 AES/EBU 分配输出 F611

- 2 modules with each 1 input and 4 outputs - Inputs and outputs transformer balanced, impedance 110 ohms via XLR sockets according to AES 3/11 - High sensitive inputs to regenerate unproper or weak input signals - High output voltages to drive long distances The SYNC UNIT option offers the following features: - 3 external inputs AES/EBU, AES-id, WCLK - 1 AES-EBU sync output - Internal oscillators with 32, 44.1, 48, 88.2, 96, 176.4, 196 kHz - Failsafe operation through switchable Auto-Mode Multimode power supply 90 � 260V AC - 19�, 1 U stainless steel case, front dark grey

   技术参数：

	Inputs:	2 x XLR female, transformer balanced
		according to AES 3/11
	Input impedance:	110 ohms
	Input sensitivity:	< 200 mV
	Outputs:	2 x 4 XLR male, transformer balanced
		according to AES 3/11
	Output impedance:	110 ohms
	Output level:	> 4V
	Output rise time:	limited to 10 nSec
	Output jitter:	< 1 nS
	Power supply:	90 � 260 V AC, 12 VA
	Dimensions:	483x44x166 mm (WxHxD), 19", 1U
	Case:	Stainless steel
	Finish:	Front dark grey
	OPTION:	SYNC UNIT
